ESCO 50-Ton Safety Locking Collar Jack

The ESCO Professional Aluminum Locking Collar Jacks (Cylinders) are known for their quality and lightweight durable design. The most important part of lifting a heavy load is the ability to sustain the load. While in most instances support jack stands are used; the Locking Collar Jack (Cylinder) acts as its own self-contained support stand.

Features

• Designed For Use In Multiple Heavy Lifting Applications Including OTR/Mining Vehicle Lifting
• High Tonnage: 50-Ton Lifting Capacity
• Heavy Duty Aluminum Design At A Fraction Of The Weight
• Lightweight And Compact Design Makes Unit Highly Portable

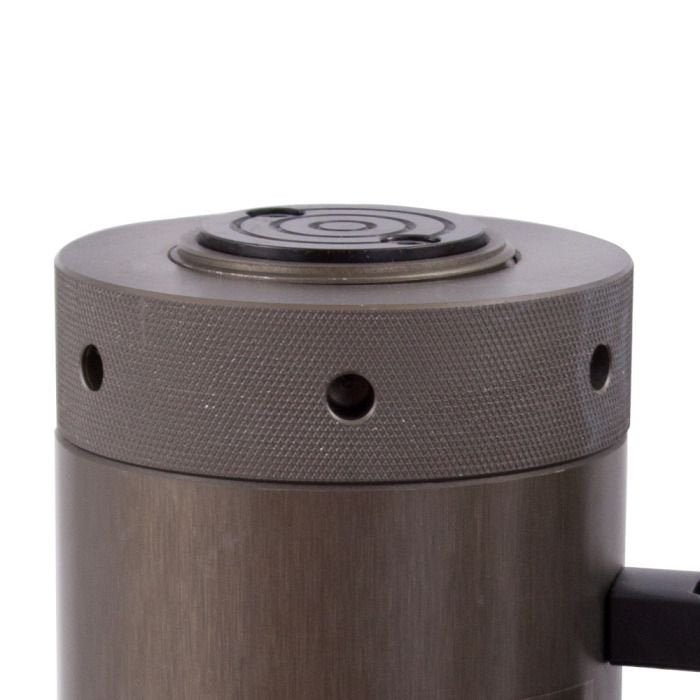

• Safety Lock Nut For Mechanical Load Holding
• 6″ (152mm) Stroke

Specifications

• Lifting Capacity: 50-Tons
• Stroke: 6″ (152mm)
• Max Pressure: 10,000 PSI
• Min. Height: 12.50″ (317mm)
• Max. Height: 18.60″ (472mm)
• Cylinder Effective Area: 10.99″ (in²)
• Oil Capacity: 67.07″ (in³)
• Cylinder Width: 5.27″ (133mm)

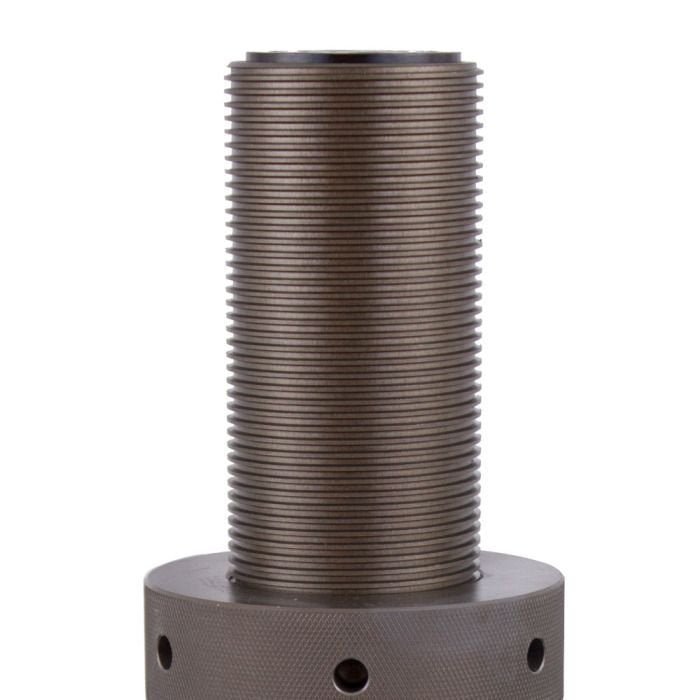

• Piston Rod Diameter: Tr80 x 4mm
• Nut Thickness: 1.57″ (40mm)
• Base Plate: 7″ x 7″ (178 x 178mm)
• Weight: 26.4 lbs. (12 kg)
• Warranty: (3) Years Limited*
